The V-Ole series introduces a flexible modular lighting concept that adapts to diverse architectural environments. A single lamp head can be combined with different installation accessories, including recessed, ceiling, LV track, and pendant configurations, providing maximum design flexibility while maintaining a consistent visual language.

Designed for modern residential, hospitality, retail, and commercial interiors, V-Ole delivers precise illumination with excellent visual comfort. Advanced optical components ensure uniform light distribution and effective glare control, while adjustable positioning allows accurate highlighting of architectural details, artwork, furniture, and display areas.

Available in different sizes and refined metallic finishes, V-Ole is not only a functional lighting solution but also an elegant design element that enhances the overall character of interior spaces.

Leave a message

Product Specifications

Key Features

Modular Configuration

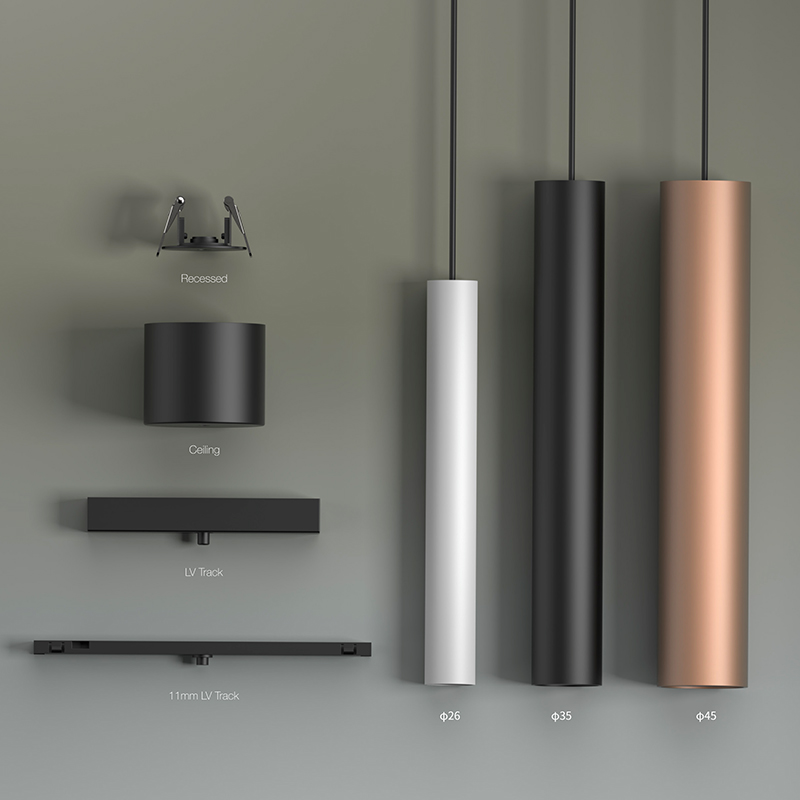

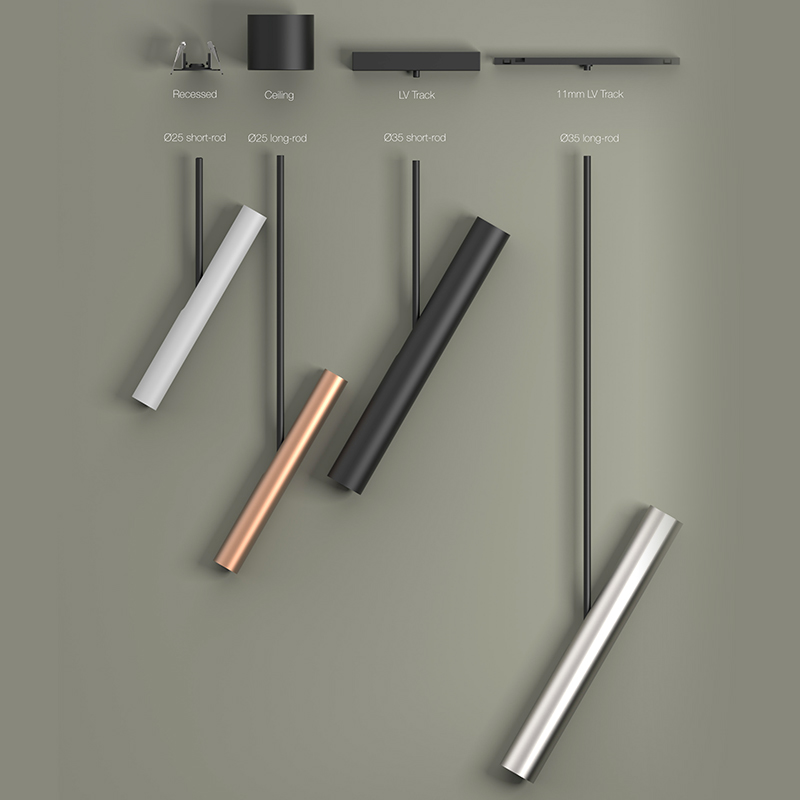

One lamp head supports multiple installation options including recessed, ceiling, LV track and pendant configurations, creating a flexible lighting platform for different applications.

Precision Optical Performance

Advanced optical components provide uniform illumination, precise beam control and excellent visual comfort. Available beam angles include 15°, 24°, 36° and 50°.

Fully Adjustable

With 350° horizontal rotation and 180° vertical adjustment, V-Ole allows precise light positioning for architectural details, artwork and display areas.

Clean Minimal Design

The integrated connection structure creates a clean appearance, while premium metallic finishes enhance both lighting performance and interior aesthetics.

Technical Specifications

Item	Ceiling 5W	LV Track 5W	11mm LV Track 5W	Spot Recessed 5W	Ceiling 10W	LV Track 10W	11mm LV Track 10W	Spot Recessed 10W	V-Ole 26 Pendant	V-Ole 35 Pendant	V-Ole 45 Pendant
Code	VLDR216 5W	VLM216 5W	VLM216-11 5W	VLC216 5W	VLDR216 10W	VLM216 10W	VLM216-11 10W	VLC216 10W	① VLC 217 5W ② VLDR 217 5W ③ VLM 217 5W ④ VLM 217-11 5W	① VLC 222 10W ② VLDR 222 10W ③ VLM 222 10W ④ VLM 222-11 10W	① VLC 223 15W ② VLDR 223 15W ③ VLM 223 15W ④ VLM 223-11 15W

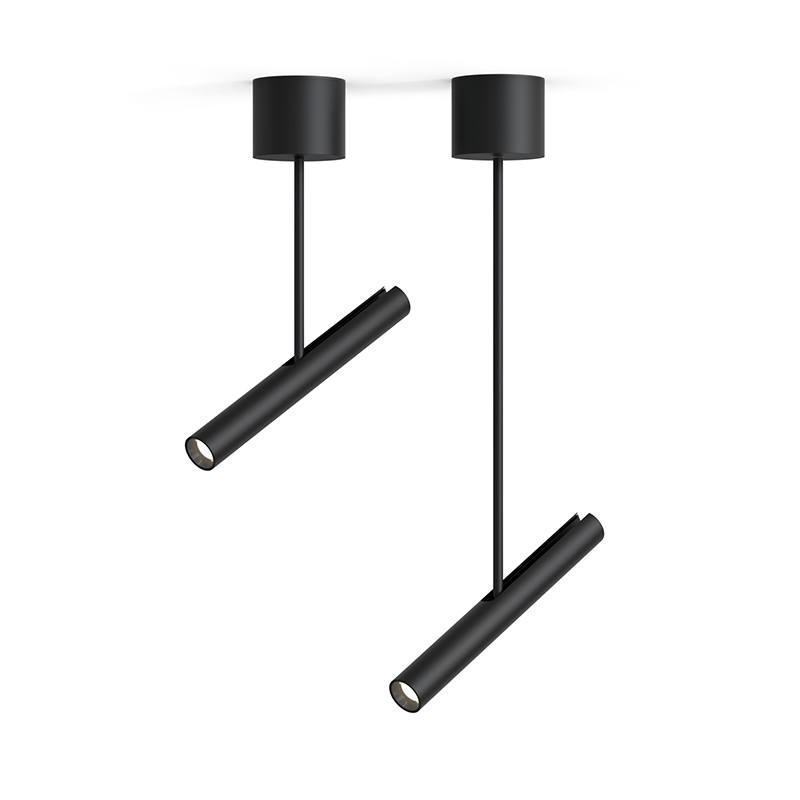

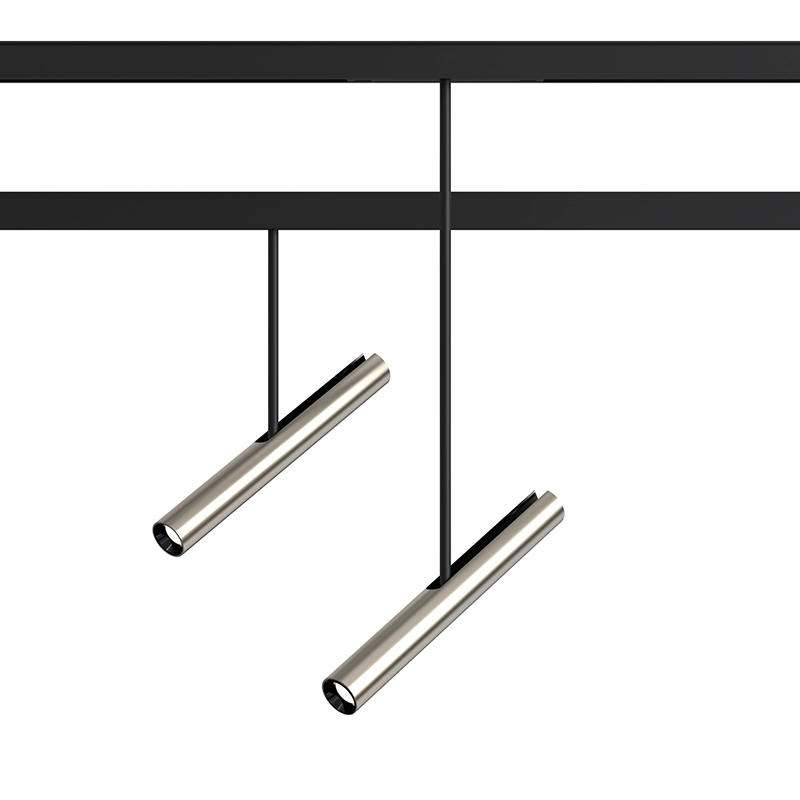

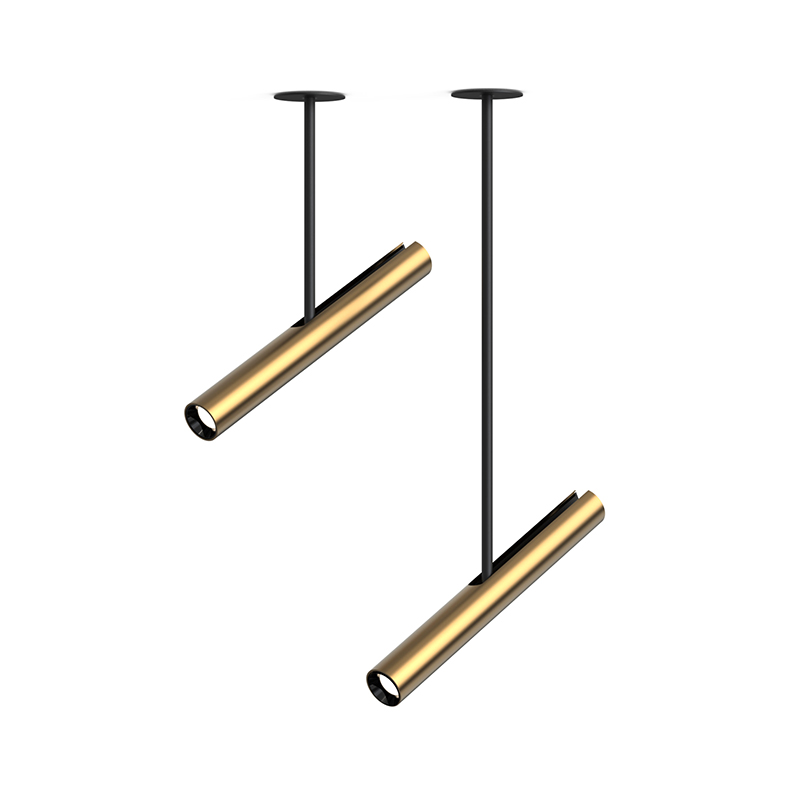

Installation	Ceiling	LV Track	LV Track	Recessed	Ceiling	LV Track	LV Track	Recessed	Pendant	Pendant	Pendant
Colours	Black, white, golden	Black, white, golden	Black, white, golden	Black, white, golden	Black, white, golden	Black, white, golden	Black, white, golden	Black, white, golden	Black, white, brushed nickel, brown brass	Black, white, brushed nickel, brown brass	Black, white, brushed nickel, brown brass
Beam Angle	15°, 24°, 36°, 50°	15°, 24°, 36°, 50°	15°, 24°, 36°, 50°	15°, 24°, 36°, 50°	15°, 24°, 36°, 50°	15°, 24°, 36°, 50°	15°, 24°, 36°, 50°	15°, 24°, 36°, 50°	15°, 24°, 36°, 50°	15°, 24°, 36°, 50°	15°, 24°, 36°, 50°
CCT	2700K,3000K,3500K,4000K	2700K,3000K,3500K,4000K	2700K,3000K,3500K,4000K	2700K,3000K,3500K,4000K	2700K,3000K,3500K,4000K	2700K,3000K,3500K,4000K	2700K,3000K,3500K,4000K	2700K,3000K,3500K,4000K	3000K,3500K,4000K,5000K	3000K,3500K,4000K,5000K	3000K,3500K,4000K,5000K
Light power(Max)	5W	5W	5W	5W	10W	10W	10W	10W	5W	10W	15W
Light flux(Max)	350lm	350lm	350lm	350lm	700lm	700lm	700lm	700lm	400lm	700lm	1050lm
System efficiency	60lm/W	65lm/W	60lm/W	65lm/W	60lm/W	60lm/W	65lm/W	50lm/W	65lm/W	60lm/W	65lm/W
Led driver	Included	Included	External	Included	Included	Included	External	Included	External	External	External
Insulation class	1	2	2	1	1	2	2	1	2	2	2
Dimming system	On-Off,DALI,0-10V,Casambi	On-Off,DALI,0-10V	On-Off,DALI,0-10V	On-Off,DALI,0-10V,Casambi	On-Off,DALI,0-10V,Casambi	On-Off,DALI,0-10V	On-Off,DALI,0-10V	On-Off,DALI,0-10V,Casambi	On-Off,DALI,0-10V,Casambi	On-Off,DALI,0-10V,Casambi	On-Off,DALI,0-10V,Casambi
CRI	>95RA (based on 3000K)	>95RA (based on 3000K)	>95RA (based on 3000K)	>95RA (based on 3000K)	>95RA (based on 3000K)	>95RA (based on 3000K)	>95RA (based on 3000K)	>95RA (based on 3000K)	>90RA (based on 3000K)	>90RA (based on 3000K)	>90RA (based on 3000K)
SDCM	3 steps (based on 3000K)	3 steps (based on 3000K)	3 steps (based on 3000K)	3 steps (based on 3000K)	3 steps (based on 3000K)	3 steps (based on 3000K)	3 steps (based on 3000K)	3 steps (based on 3000K)	3 steps (based on 3000K)	3 steps (based on 3000K)	3 steps (based on 3000K)
